XLV Family

A complete and professional solution for receiving live broadcast TV from multiple tuners and streaming it over IP networks for reliable, large-scale distribution.

Flexibly stream live TV broadcasts to IP network supports DVB-T/T2/S/S2/C/ISDB-T/ATSC1.0/3.0.

XLV product rapidly integrate into existing network environments, are easy to use and maintain remotely- offering competitive price -performance ratios.

Ideal for Live Stream TV and rich media distribution for Business TV, digital signage, hotels, universities, hospitals, corporations, retail, entertainment, e-learning, and a multitude of other uses.

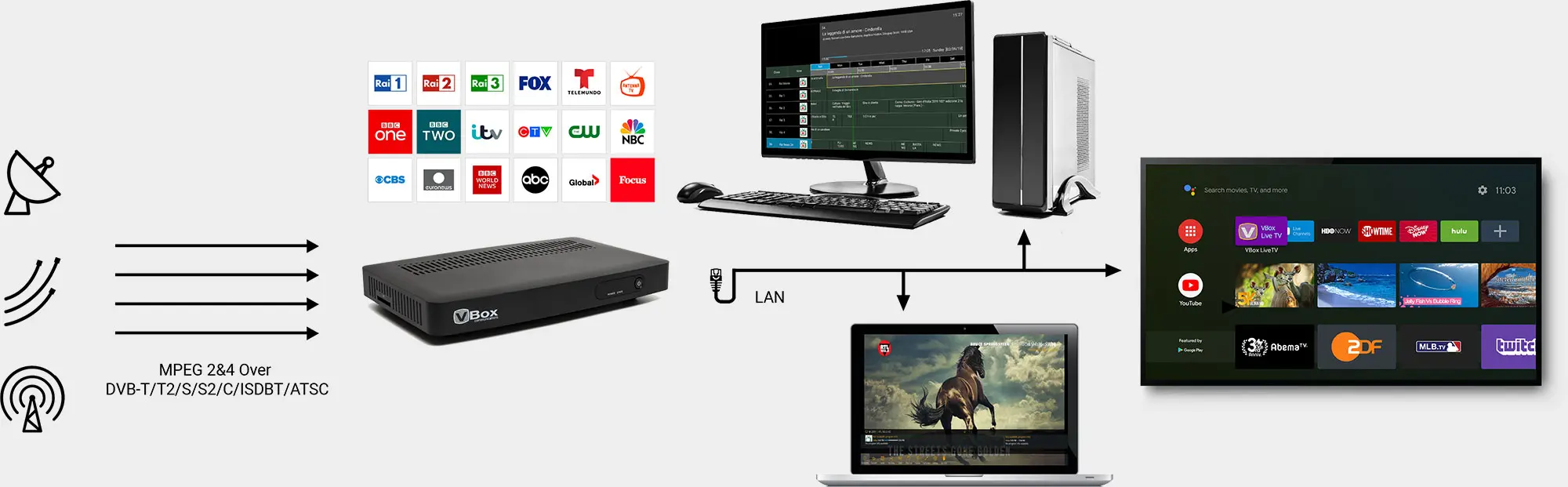

Typical XLV Setup

Explore XLV setup in a variety of applications

XLV features

Streams live channels over IP from four transponders
Cost-effective DVB-S2/T2/C/ ISDB-T /ATSC TV gateway MPEG 2&4 over IP Streamer
Streaming MPEG-2, 4, H.264, H.265 4K over-IP
Transport stream de-multiplexing, de-scrambling, and PID filtering
User-friendly, Web control interface
Easy integration into existing networks
Multicast and unicast UDP
IGMP server
SNMP for remote control and monitoring
Supports SAP (Service Announcement Protocol)
UPnP ~ DNLA 1.5 Server

* The product features listed above are representative, and may change depending on final product configuration and pricing.

Product Brochures

Download the XLV family product brochure

Download the XLV express form factor product brochure

Download the XLV express 19 inches product brochure

Product Specifications

DVB-S/S2
4 Tuners & demodulators

External connector: 4 X F type, female
Receiving frequency:
950 MHz to 2150 MHz Input signal level:
-25 dBm to -65 dBm nominal
RF input impedance: 75W

4 X LNB Power and Switching
Supply Voltage Selectable: 13V or 18V
Max LNB Current: 400 mA
Antenna Control: 22 kHz signal
DiSeqC: 1.0, 1.1, 1.2 supported

DVB-S
Symbol Rates: 1.5 – 45 Msps
(1 – 45 Msps optional)
Transport Stream processing:
Up to 8Mbps
Reed-Solomon Outer Code (204,188)T=8
Vierbi Inner Code
K=7,R=12,2/3,3/4,5/6,7,8

DVB-S2
Transmission format support:
LDPC/BCH (DVB-S2)
8PSK: SR = 10–30 MSps
QPSK: SR = 10–30 MSps
Roll Off: 0.2, 0.25, 0.35.
Pilot On/Off
Spectral Not inverted / Inverted

DVB-S2 FEC
LDPC/BCH QPSK ½, 3/5, 2/3, ¾ ,
4/5, 5/6, 8/9, 9/10
LDPC/BCH 8PSK 3/5, 2/3, ¾,
4/5, 5/6, 8/9, 9/10

DVB-T2/C/ATSC 1.0/3.0/ISDB-T
4 Tuners & demodulators

External connector: 1 X F type, female Internal 4 X Tuner demodulator
Receiving frequency:
DVB-T/T2/ATSC/ISDBT – VHF:174~230MHz,
UHF:474~858MHz
DVB-C – 100MHz~858MHz

Data Handling and De-multiplexing
Multi-Protocol Encapsulation (MPE)
Datagram and section packing
Unicast/multicast filtering
Multicast address filters: 128
PID Filters:
UDP/TCP/IP protocols
PSI/TCP private tables
LLC SNAP/null encapsulation

Stream Output Formats
Standard: Transport Stream (TS)
32 programs in TS/UDP/IP
Announcement using SAP
Optional: Elementary Stream –ES
Packetized Elementary Stream-PES
Program Stream –PS
Subtitle
Streaming RTP
Save to file
Streaming from file
EPG

General Specifications

LAN Interface
Connector: 1x RJ-45
Speed: 10/100/1000 Auto-Sensing

LED Indicators
Power On
LAN Led

Physical/Environmental Data
Size (H x W x D):292x53x237 mm
Operating Temperature: 0 -40ºC
(32 – 104ºF)
Storage Temp: -10 – 85ºC
(14 – 185ºF)
Operating Humidity: 10% – 90%

Power Supply
12v DC adaptor
Power input: 100-240 VAC
Power frequency: 50-60 Hz
Power Consumption: 60 W (typical)

Regulatory Compliance
CE, FCC- Part 15 Class B
