XTM Monitoring

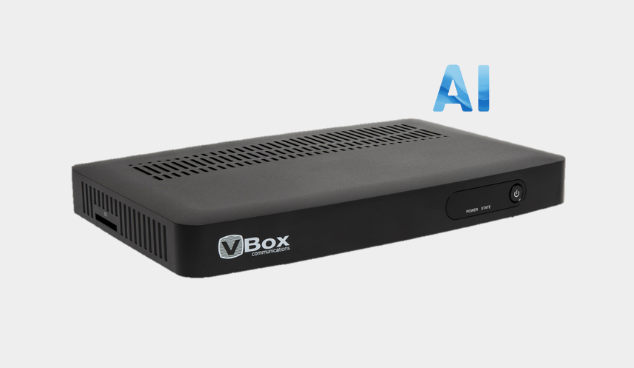

Meet XTM — the future of broadcast monitoring

VBox XTM Monitoring ensures reliable analysis broadcast real-time TV signal and advanced AI-driven object Detection.

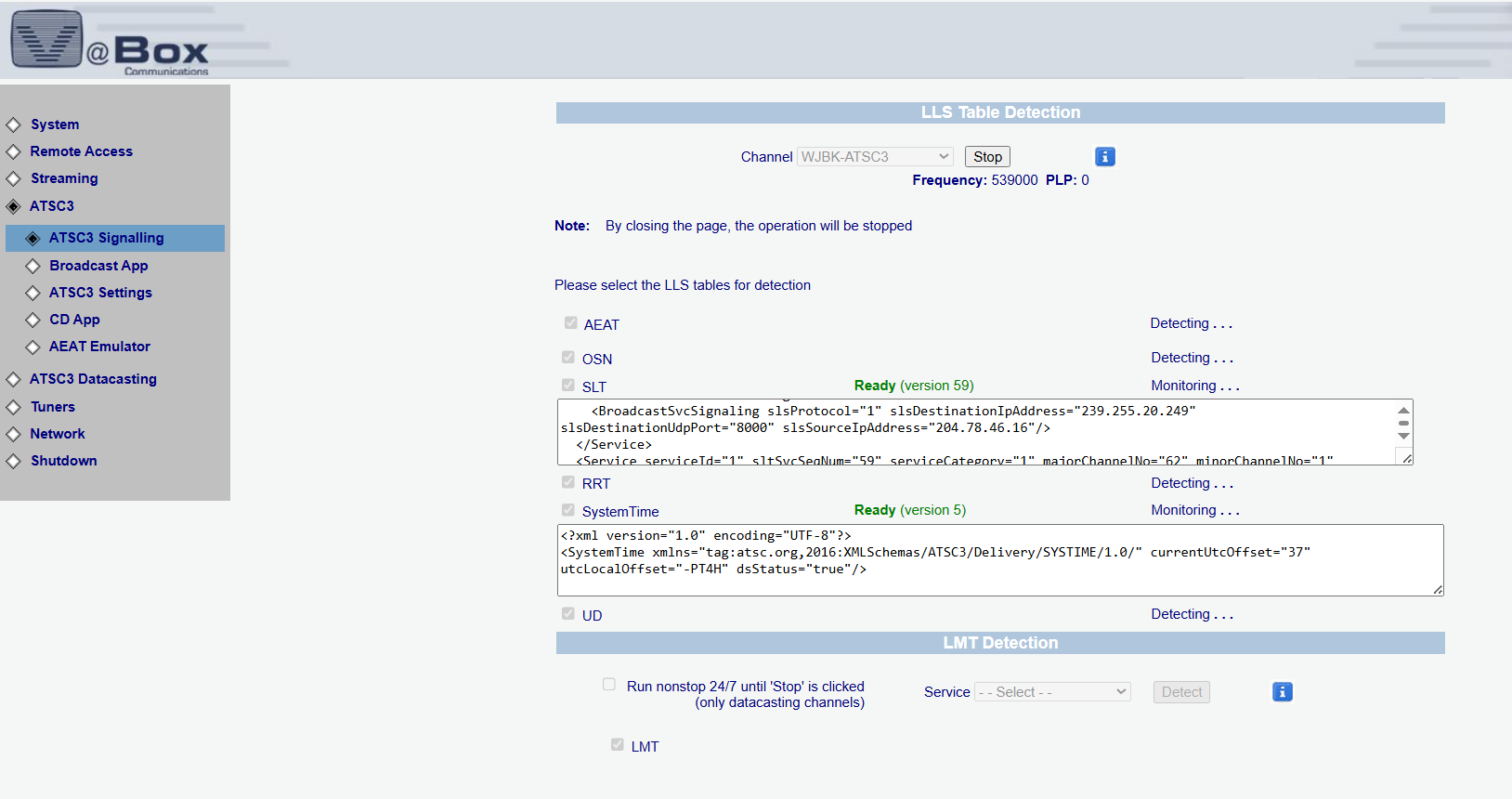

Thanks to simple remote access, XTM enables ad and content verification monitoring at the transmission edge across DVB-T2, ATSC 1.0, ATSC 3.0, including Broadcast App content.

XTM gives broadcasters and service providers the tools to secure signal integrity and content quality.

Product Features

Explore XTM Management

Meet our Powerful Object Detection on live TV

Edge solutions, AI-powered Object Detection for real-time Ad verification, content verification and monitoring – edge diagnostics on live TV, closest to your audience
The system processes live signals locally, ensuring privacy, low latency, and reliability, while providing real-time insights into on-screen content.
On-device AI for privacy, reliability, and low latency
Lightweight & efficient—built to run while you keep watching

Object Detection common use cases & features

Real-time detection & counts on live content
Choose what to detect (e.g., people, faces, common objects)
Instant notifications when a selected object appears
Processing with local or cloud AI
Enriched second-screen or accessibility experiences

Product Brochures

Be added soon

Product Specifications

DVB-T2/ATSC 1.0/3.0
4 Tuners & demodulators

External connector: 1 X F type, female Internal 4 X Tuner demodulator
Receiving frequency:
DVB-T2/ATSC 1.0/3.0 VHF:174~230MHz,
UHF:474~858MHz
DVB-C – 100MHz~858MHz

Data Handling and De-multiplexing
Multi-Protocol Encapsulation (MPE)
Datagram and section packing
Unicast/multicast filtering
Multicast address filters: 128
PID Filters:
UDP/TCP/IP protocols
PSI/TCP private tables
LLC SNAP/null encapsulation

Stream Output Formats
Standard: Transport Stream (TS)
32 programs in TS/UDP/IP
Announcement using SAP
Optional: Elementary Stream –ES
Packetized Elementary Stream-PES
Program Stream –PS
Subtitle
Streaming RTP
Save to file
Streaming from file
EPG

General Specifications

LAN Interface
Connector: 1x RJ-45
Speed: 10/100/1000 Auto-Sensing

LED Indicators
Power On
LAN Led

Physical/Environmental Data
Size (H x W x D):292x53x237 mm
Operating Temperature: 0 -40ºC
(32 – 104ºF)
Storage Temp: -10 – 85ºC
(14 – 185ºF)
Operating Humidity: 10% – 90%

Power Supply
12v DC adaptor
Power input: 100-240 VAC
Power frequency: 50-60 Hz
Power Consumption: 60 W (typical)

Regulatory Compliance
CE, FCC- Part 15 Class B
